Wide Product Range

  • Step up / Step Down Auto Transformers
  • Rating 1 KVA to 200 KVA 3 Phase
  • 1 / 2 Phase 1 KVA to 10 KVA

Efficiency & Reliability

  • Efficient designs using Class H Insulation
  • Low Impedance & Temperature Rise

Additional Features

  • Multi-top options available
  • Indicators for Power ON / OFF
  • Protection: MCB / MCCB
  • Metering: Voltage / Current / Power
Brochure Enquiry

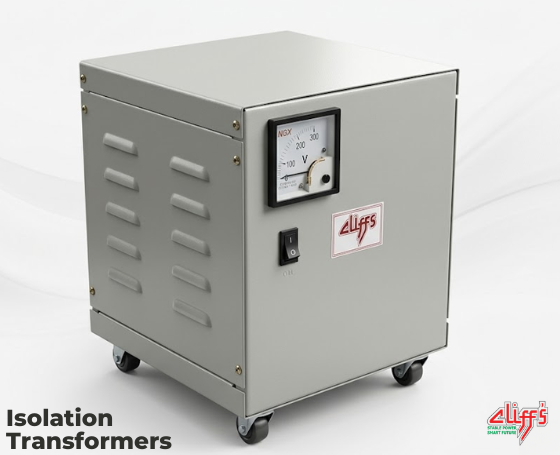

Product Image
Specification
Parameter 1-Phase / 2-Phase 3-Phase
Rating 1 kVA to 10 kVA 1 kVA to 200 kVA
Type of Transformer Dry type, floor mounted, natural air-cooled Floor mounted, natural air-cooled / oil-cooled (depending on rating)
Configuration 1:1 (or as per user specification) Delta / Star 1:1 (as per user specification)
Default Vector Group Dyn11 Dyn11
Winding Copper Wire / Strip or Aluminium Wire / Strip Copper Wire / Strip or Aluminium Wire / Strip
Class of Insulation Class H Class H
Housing Sheet metal housing provided with Input / Output terminations
