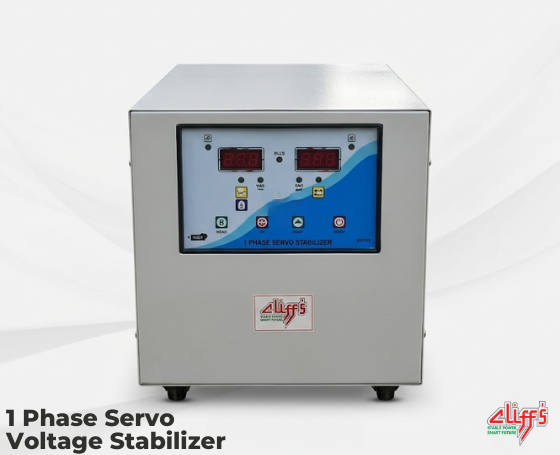

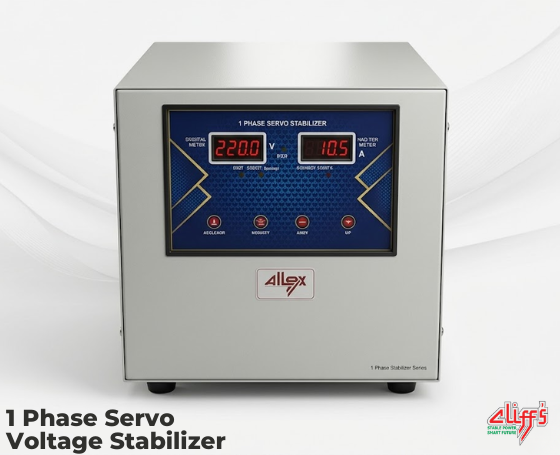

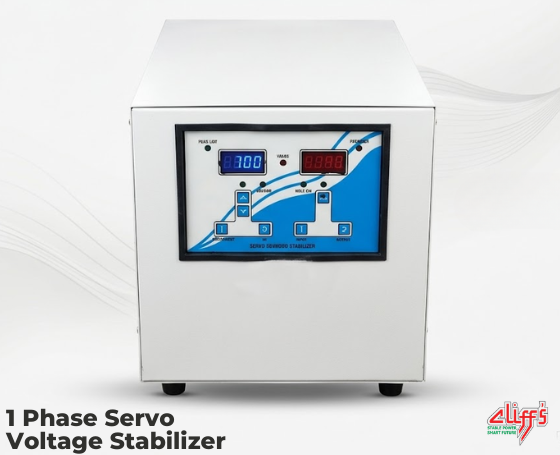

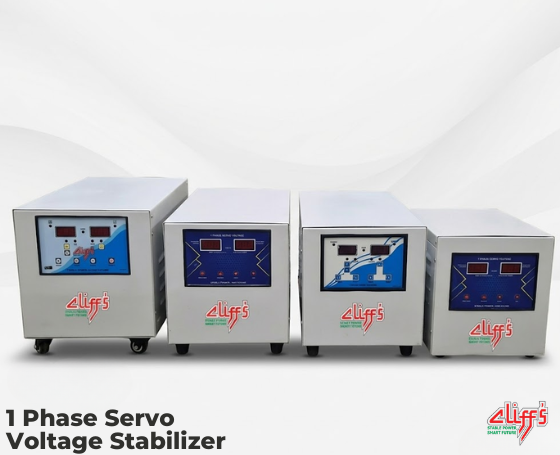

1 Phase Servo Voltage Stabilizer

Powering Growth with Constant Energy Solutions

  • Single Phase 1KVA to 15 KVA
  • Operating Voltage 170V - 270V AC
  • Air Cooled, Floor Mounted
Brochure Enquiry
Main Instrument

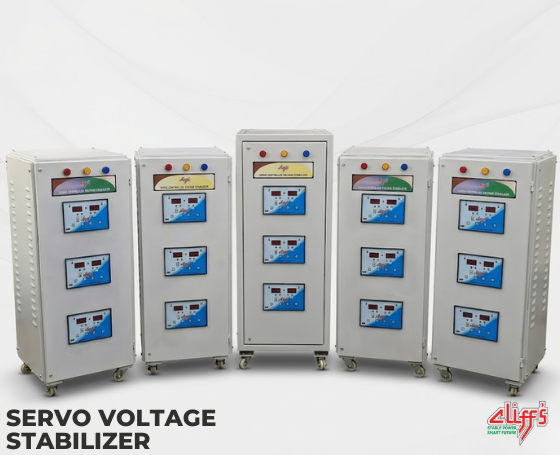

3 Phase Voltage Servo stabilizer

We deliver reliable and efficient energy solutions that drive consistent growth.

  • Ratings 5 KVA to 500 kVA THREE Phase Multiple Input ranges to suit various operating voltage 300VAC – 470 VAC
Brochure Enquiry
Main Instrument

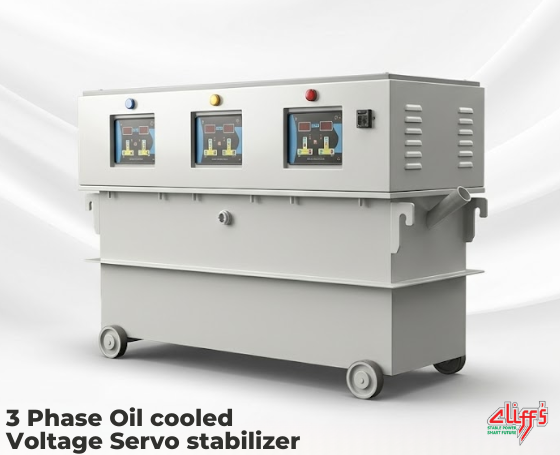

3 Phase Oil cooled Voltage Servo stabilizer

Our systems are designed to ensure uninterrupted performance across industries.

  • Ratings 3 KVA to 500 kVA THREE Phase Multiple Input ranges to suit various operating voltage
  • 3 KVA - 150 KVA Air cooled Input Range 330V - 460V , 360V - 480V
  • 50 KVA - 750 KVA Oil Cooled Input Range 330V - 460V , 360V - 480V
  • Output Voltag : 380V ± 1%, 400V ± 1% , 415V ± 1%
Brochure Enquiry
Main Instrument

Product Range

Characteristics Single Phase Three Phase
INPUT VOLTAGE 170-270 V AC 330-470 V AC
REGULATION 230V ± 1% (Adjustable 210 - 240V) 415V/440 ± 1% (Adjustable, Unbalanced / Balance type)
FREQUENCY 47-53 HZ 47-53 HZ
NATURE OF COOLING Air Cooled Air Cooled & Oil Cooled
SPEED OF CORRECTION 20V /Sec or 35V/sec ± 1% from No load to Full load 20V /Sec or 35V/sec ± 1% from No load to Full load
REGULATION 20V /Sec or 35V/sec ± 1% from No load to Full load 20V /Sec or 35V/sec ± 1% from No load to Full load
AMBIENT TEMPERATURE 0 to 55 deg Celsius 0 to 55 deg Celsius
Designed for IP20 Indoor DUTY CYCLE continuous operation

Wide Product Range

  • Ratings 5 - 500 kVA THREE Phase
  • Multiple Input ranges to suit various operating voltage 330VAC – 470 VAC
  • Ratings 1 - 10 kVA SINGLE Phase
  • Multiple Input ranges to suit various operating voltage 170VAC – 270 VAC

Product Feature

  • Microprocessor based control system for measurement and correction
  • Two separate earthing terminals at the bottom of the tank on both sides in three phase
  • Auto switch for Auto / Manual
  • Output voltage adjustment with lock nut
  • High speed correction upto 35V / sec
  • Lifting lugs for fitting the complete unit for higher capacity
  • Bi-directional rollers for sliding the complete unit
  • MCB / MCCB provided for short circuit protection

High Efficiency

  • Stabilisers designed to its full rated capacity
  • Milered CRGO core ensures low losses, magnetizing current and low noise level

After Sales Support

  • Replace first ask later guarantee
  • Dedicated and experienced service team covering all locations across India
  • Fast service response
